A-S

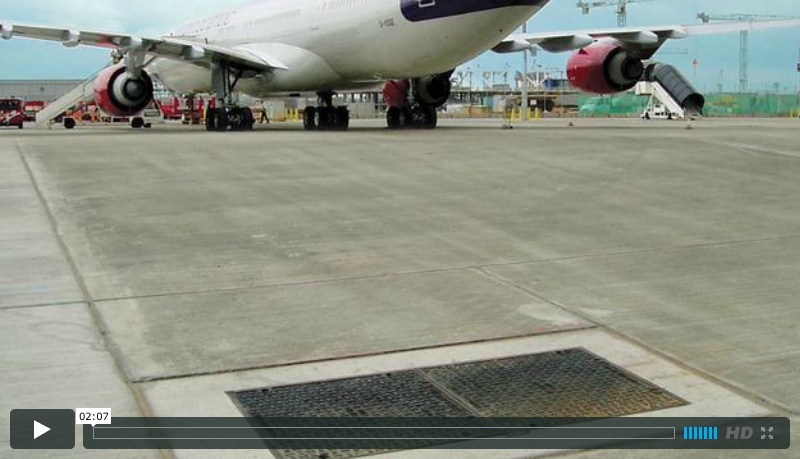

Gatic Slotdrain is now widely recognised as one of the most advanced and innovative solutions for surface water drainage. Originally developed in conjunction with leading construction professionals from the airport sector Gatic Slotdrain is quickly becoming the system of choice in many regions of the world, due to the benefits provided to the client, engineer and contractor.

Gatic Slotdrain has been load tested to 900kn and will withstand, with adequate factors of safety, wheel loadings imparted by the heaviest aircraft in service. The channels are safe, durable, neat and discreet with a standard 30mm throat intake opening, there is also the option of a treadsafe bar where pedestrians might transverse the channel.

A wide range of channel sizes are available which can be joined together to form the most efficient step fall design. The company offer, without obligation, a comprehensive technical support and design service to provide solutions to customer’s drainage requirements, in addition Gatic Slotdrain Interactive Design Software is available for engineers who wish to carry out their own design and detailing.

The Gatic range of ductile iron engineered removable access covers are ideally suited to the demands of a modern airport. Load tested to 900kn the covers will withstand, with adequate factors of safety, wheel loadings imparted by the heaviest aircraft in service.

Covers are available with either a non slip solid top or are recessed for concrete infill at site. Sizes range from single man access covers through trench covers for pipe/cable access to multi part units with removable support beams, which facilitate uninterrupted access to large chambers, where there are below ground services.

The machined fit between the covers and frames ensures that the covers are non rocking, secure, gas/airtight and will prevent ingress of water into the chamber.
