Access IS - LSR116 2D barcode reader for integration into kiosks, podiums, mobile ticket readers and access gates

The LSR116 is designed to read 2D barcodes including QR, AZTEC and Datamatrix from smartphones, tablets and paper.

  • Fast, accurate and reliable reads for smartphones and tablets
  • Rugged, dust-proof and water-resistant
  • Compact, sealed, slot-in design
  • Reads all popular linear and 2D barcodes
  • Equally high-performance reading paper

The LSR116's unique design, with optimised focal distance and a 2D omnidirectional barcode imager, ensures read reliability for smartphones, tablets and paper. Its high-speed performance captures and decodes linear and 2D barcodes instantly on presentation in any orientation.

It has a small-footprint, slot-in design to enable fast and easy integration into third-party, public access kiosks and gates. Furthermore, its rugged, water-resistant construction, with no moving parts, enable it to withstand years of indoor and outdoor public frontline use.

The LSR116 may be configured with data format settings. Serial RS232 and serial or keyboard USB interface versions are available. When operated in interactive mode, the LSR116 can be controlled by the host application to give green light LED 'successful read' feedback to the user.

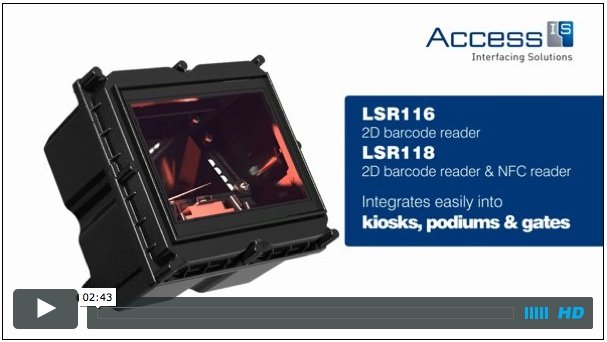

To really understand the benefits and flexibility of the LSR116 watch a short animated video

LSR116 datasheet

LSR116 environmental test report

LSR116 Technical Features

  • Airport countertop check-in readerFully sealed, robust, water-resistant units suitable for integration into indoor or outdoor kiosks, podiums and gates
  • Quick plug-in design reduces cost of kiosk integration
  • Unique optimised focal distance design improves read performance for paper, PDA's, tablets, smartphones and mobile handsets
  • Intuitive operation with user feedback (green & red LED lights)
  • RS232 and USB (serial or keyboard) interface options
  • Reads on face-down presentation of a barcode
  • Reads 2D, QR, AZTEC, Datamatrix, PDF417 and linear symbologies
  • Single interchangeable cable connection to host PC
  • RS232 and USB (serial or keyboard) interface options
  • FLASH upgradeable software
  • Interactive mode allows host application to control reader functions
  • Fully configurable via detachable host interface

Airport check-in counters (above right)

Public transportation smart ticketing (right)

Access IS - OCR640 full-page multi-illumination desktop readers for ePassports and eID Cards

  • Multi-illumination full-page ePassport & eID document reader
  • Single action MRZ, chip and image decoding
  • Automatic data detection
  • Fast, accurate and reliable
  • Compensates for out-of-position MRZ data
  • Audio beep operator feedback
  • High-quality compact design
  • Robust and durable for frontline use

OCR640 datasheet

The OCR640 desktop is a full-page multi-illumination ePassport reader. It captures ultraviolet and infrared images, as well the full page of a passport in colour. In a simultaneous single action the reader also decodes the machine readable zone (MRZ) and processes eData, including the holder's image, from the chip.

The OCR640 automatically detects when a document with machine readable data has been presented. Additionally, it is able to compensate for out-of-position MRZ data, so that the advanced recognition engine reliably provides highly accurate and very fast document reading capability, allowing large volumes of documents and smart cards to be processed quickly and efficiently.

The unit features blue, amber, green and red LED lights to keep the user informed of statuses from ready to scan through to processing and successful scan, or that there is an issue with the document. A programmable audio beep provides additional user feedback to confirm successful scans.

The OCR640 has a compact body design and a variety of hood designs. Furthermore, its robust, rugged, quality-assured UK manufacture enables it to withstand years of heavy duty frontline use.

To discuss your full-page passport reading requirements contact or call +44 (0)118 966 3333.

OCR640 Desktop Full-page Scanner Features

  • Reads passports, ePassport and eID cards and visas
  • Full page capture and chip read in a single action
  • Full-page capture in colour, greyscale & UV
  • Reads a wide variety of OCR data, including all passports, ID cards and visas conforming to ICAO 9303
  • Fast, accurate and reliable
  • Instant audio beep feedback to confirm successful data capture
  • Robust, compact, low profile design
  • Small footprint
  • Variety of hood designs available


  • Banks
  • Building societies
  • Credit unions
  • Trust companies
  • Mortgage companies
  • Financial and trading institutions


  • The OCR640 decodes MRZ and, optionally, chipped information

MRZ reading

  • Light source: IR, white LED &    UV
  • Standard OCR fonts: OCR-B
  • Machine readable passports (MRP) : 2 lines of 44 characters to ICAO 9303
  • Machine readable visas (MRV) : 2 lines of 44 characters, 2 lines of 36 characters to ICAO 9303
  • Travel documents: 2 lines of 36 characters, 3 lines of 30 characters

Image capture

  • Full-page: Output to JPEG file 400 DPI; approx. 260 kB size

Contactless RF reading (option)

  • Interoperability: Passport booklets and ID cards conforming to the global standards for interoperability by the ICAO9303 2005
  • Operating frequency: 13.56 MHz
  • Supported documents: ISO 14443 type A & B including auto-detection; secure and high-speed data transmission; Mifare memory card support (Mifare ultralight, 1K, 4K cards)
  • Application interface: PC/SC compliant device
  • Approvals: IC, CB, FCC, UL


  • External dimensions: 122L x 169W x 126H mm excluding rubber feet 6 mm high ; kiosk version available without housing
  • Body: Dark grey ABS
  • Glass: 4 mm toughened Borosilicate; BS EN60068-2-75 & IEC 62262:2002, rated to 3.5 J impact

Power supply

  • +5 VDC; without RFID powered via single USB interface; with RFID via two USB connections or external PSU

Communications & host

  • Communication: USB 2.0 high speed
  • Host: OS Windows XP; Pentium 2GHz and 1GB RAM minimum
  • RFID driver: Microsoft CCID driver; industry standard PC/SC compatible


  • Temperature: operating 0 to 50 °C; storage: 0 to 60 °C
  • Humidity: 0 to 95% non-condensing
  • Approvals: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1

Access IS - OCR315 / OCR 316 - USB OCR Reader with Optional MSR

The OCR315 and OCR316 are compact and robust OCR readers. The devices can be physically attached to a variety of handheld and ultra mobile PCs, or simply attached to standard desktop keyboards or monitors. The interface connection is via USB. The reader's track length is optimised to ensure that passports and ID cards are correctly aligned for consistent and accurate reading.

The OCR decoder has an advanced recognition engine that provides highly accurate and very fast document reading.

The OCR315 bi-directional reader can read 2-line and 3-line MRZs from passports, ID cards, machine-readable visas and ICAO9303 travel documents.

The OCR316 model has all the MRZ functionality of the OCR315, but also integrates a three-track MSR to read credit and debit cards, loyalty cards and frequent flyer cards.


  • Airport check-in applications and security checks
  • AQQ, eBorders and APIS generation
  • Duty free
  • Hotel and car hire registration
  • Portable border control applications
  • Banking ID checks
  • Police identification-checking

Features – OCR315

  • Compact design and small footprint
  • USB 2.0 interface (USB HID, keyboard and virtual serial interfaces)
  • Reads machine-readable passports, visas and travel cards conforming to ICAO Document 9303
  • Rapid and accurate decoding using Access' established OCR decoding technology
  • Bidirectional OCR read
  • Bi-colour LED and audible alarm providing good/bad read indication
  • Can be used as a stand-alone device or mounted on monitors, keyboards or tablets
  • Different cable length options
  • Multiple cable exit positions
  • Firmware download / upgrade capability

Features    – OCR316

  • Same features as the OCR315, with an additional bi-directional, 3-track MSR conforming to ISO tracks 1, 2 and 3.

OCR Functionality
The OCR reading functionality captures code lines reliably from machine readable documents, including passports (MRP), visas (MRV) and OCRB-encoded cards such as the US Resident Alien Card and European national ID cards. In addition, APACS debit and credit documents can be read (APACS standards 3.1 and 3.2, respectively), together with E13B, OCRB and mixed E13B and OCRB fonts.

MSR Functionality

  • The MSR is capable of reading three-track magnetic cards complying with ISO7811/2-5.



  • Standard OCR fonts: OCR-B; and E13B (by special order only)
  • Machine readable passports (MRP) : 2 lines of 44 characters
  • Machine readable visas (MRV) : 2 lines of 44 characters, 2 lines of 36 characters
  • Travel documents: 2 lines of 36 characters, 3 lines of 30 characters

MSR (OCR316)

  • Card type : three-track magnetic cards complying with ISO7811/2-5


  • Overall dimension: 150L x 44W x 42H mm (excluding feet); x 45H mm (including feet)
  • Weight: 200 g
  • Beeper: Single beep for good read, 3 beeps for bad read
  • Indicators: Power and good and bad read LED indication
  • cable length: Short and 1.5m options

Electrical specifications

  • Input voltage: +5 VDC, 250 mA via USB connection


  • Operating temperature: 0°C to 50°C
  • Storage temperature: -20°C to 60°C


  • Safety: EN 60950-1: 2006
  • RF/EMI:    EMC: FCC 47CFR Part 15 Class A; EN 55022: 2006 + Amd1: 2007; EN 55024: 1998 + Amd1: 2001 + Amd2: 2003
